R-LS14-E

Rolling Gate for a Grinding and Polishing Machine

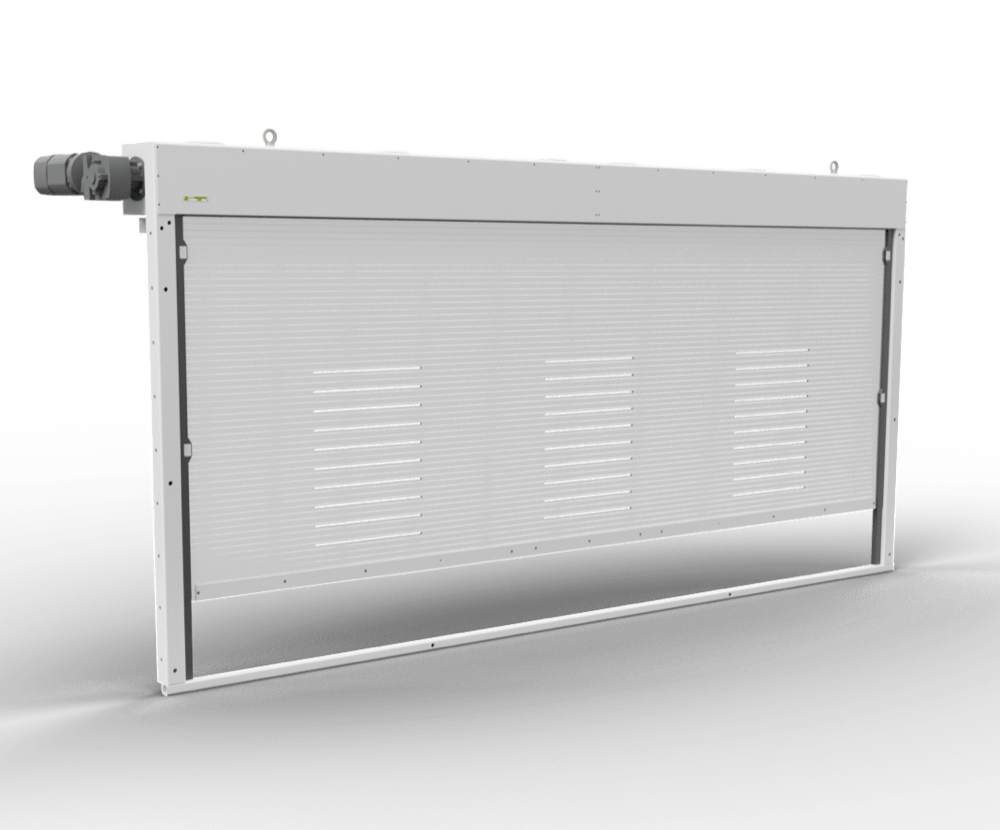

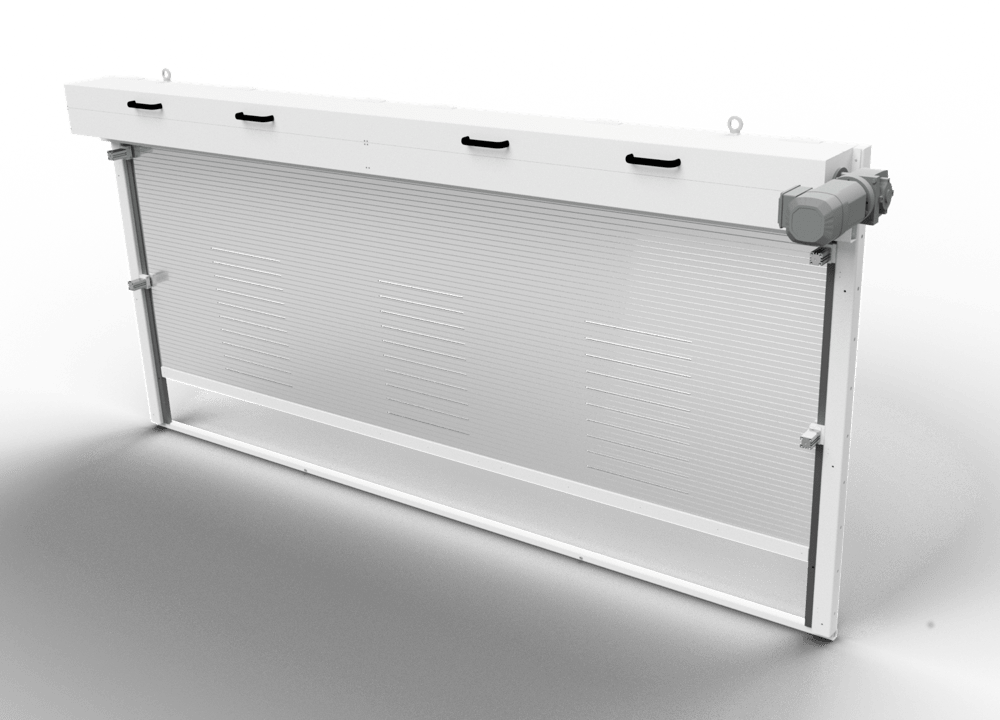

3D-Model Rolling Gate for a Grinding and Polishing Machine
3D-Model Rolling Gate for a Grinding and Polishing Machine

Equipment:

  • Alutec LS14 Aluminium Profile
  • Electrical drive
  • Slideway system with safety interlocks in the top and middle position
  • Housing with winding shaft (Version with hinged housing covers)
  • Support for easy assembly
  • Crane lugs for safe transport and assembly
  • Viewing window (Partially as stripes)
  • Safety edge

Process:

  1. Fitting with workpiece
  2. Close the protective gate
  3. Start the processing
  4. Open the protective gate and remove the workpiece

Technical data of the illustrated type:

Mounting positionRolling Gates
Extension length1500 mm
Width 4000 mm
Type of coverAluminium profile
Type of driveMotor
Max. opening speed1 m/s
Max. closing speed1.2 m/s
Min. reverse radius45 mm
Apron weight150 kg
Option EiCON controlNo
Application areaMachine construction
Logistics
Automation
Reference numberRef: 0017

Conditions:

  • Emulsion resistance
  • Sealing quality IP54
  • Wipeable

Rolling Gate for Machine Tool

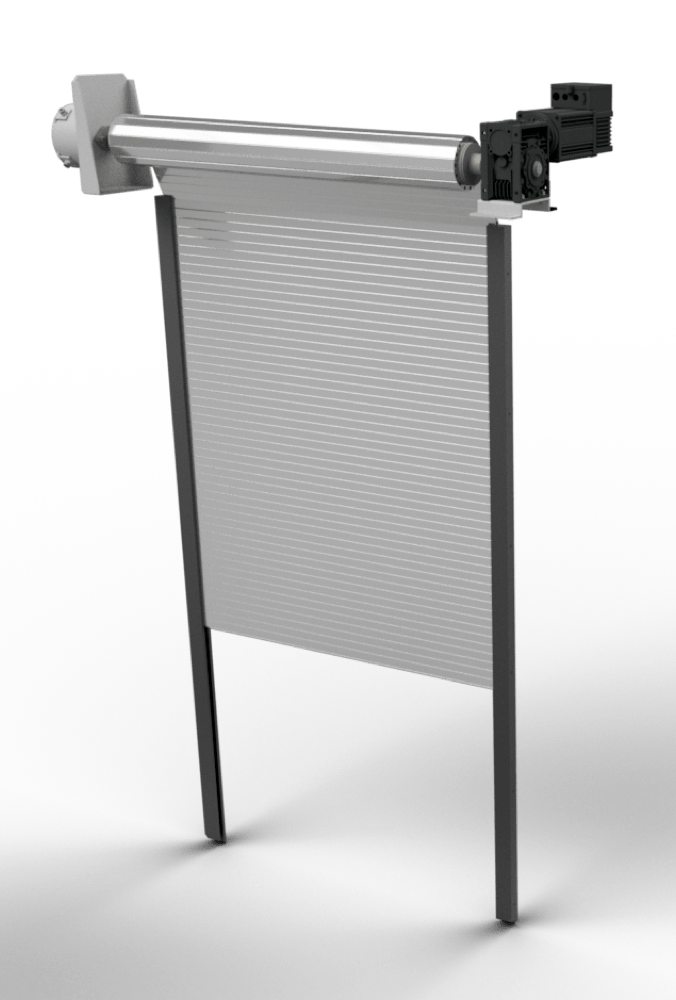

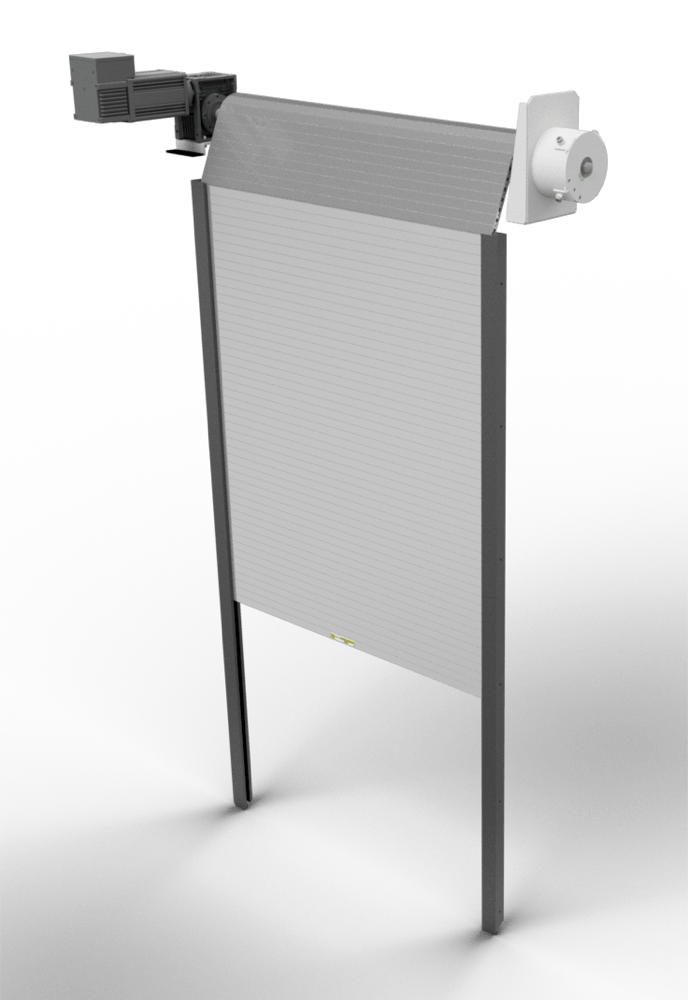

3D-Model Rolling Gate for Machine Tool
3D-Model Rolling Gate for Machine Tool

Equipment

  • Alutec LS14 Aluminium Profile
  • Electrical drive/ spring motor
  • Slideway system
  • Without housing with winding shaft on bearing blocks

Process:

  1. Operator loads with pallet truck
  2. Rolling door closes, after confirmation
  3. Robot takes out pallet

Technical data of the illustrated type:

Mounting positionRolling Gates
Extension length1600 mm
Width 1100 mm
Type of coverAluminium profile
Type of driveMotor
Spring motor
Max. opening speed0.6 m/s
Max. closing speed0.6 m/s
Min. reverse radius45 mm
Apron weight44 kg
Option EiCON controlYes
Application areaMachine construction
Logistics
Automation
Reference numberRef: 0008

Conditions:

  • Higher-level controller controls the rolling gate
  • Decentralized frequency converter with control
  • Winch
