R-GLK20

Rolling Gate with Interlock

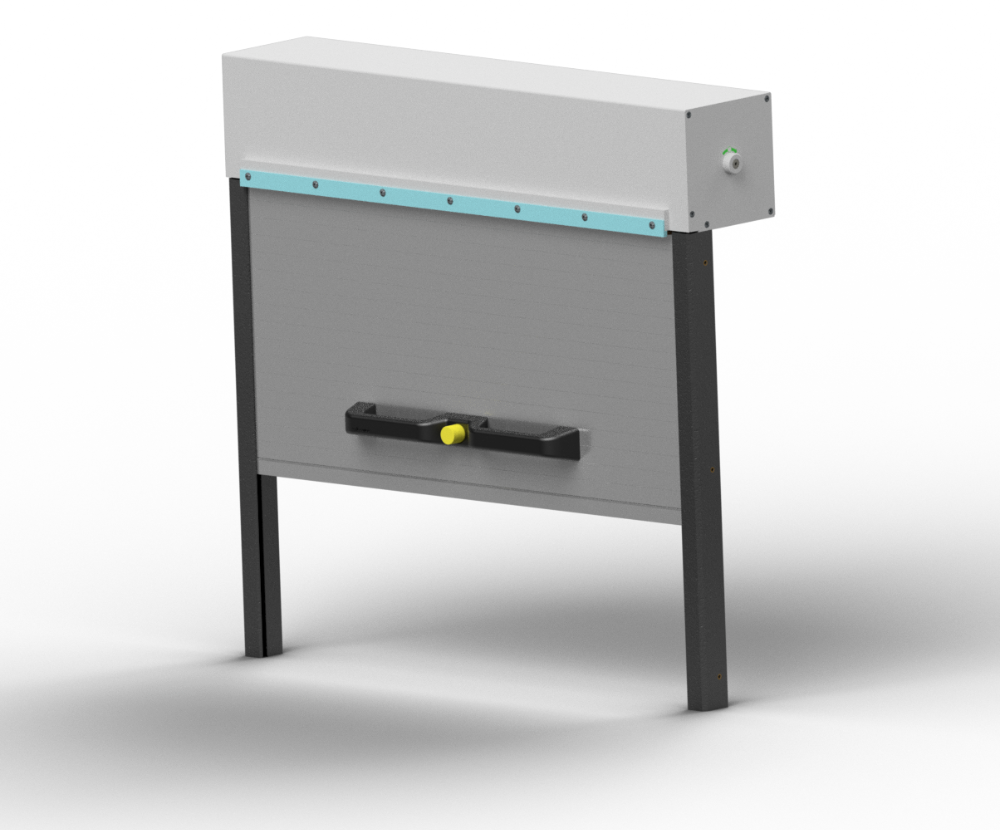

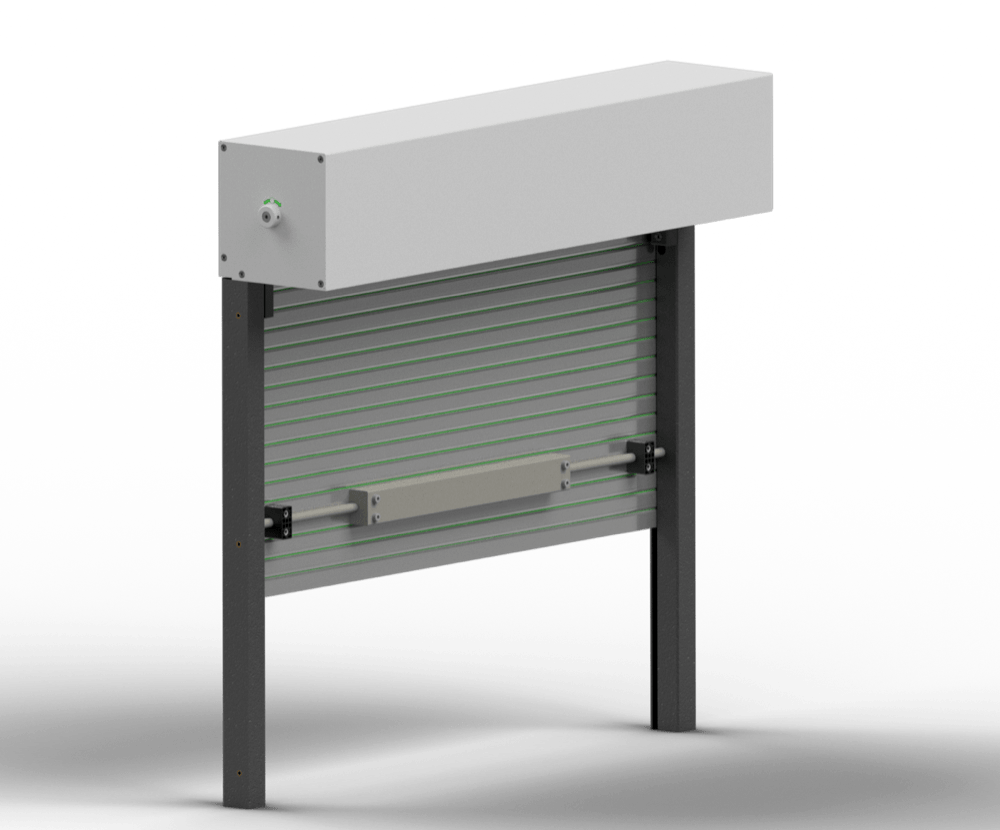

3D-Model Rolling Gate with Interlock
3D-Model Rolling Gate with Interlock

Equipment:

  • Alutec GLK20 Aluminium Profile
  • Slideway system
  • Housing
  • Handle with interlock
  • Adjustable force of the spring

Process:

  1. Open by pressing the lock
  2. Rolling gate opens by the spring motor
  3. Machine is loaded
  4. Closed by hand
  5. Locking in the end position

Technical data of the illustrated type:

Mounting positionRolling Gates
Extension length668 mm
Width 719 mm
Type of coverAluminium profile
Type of driveManual operation
Max. opening speed1 m/s
Max. closing speed1 m/s
Min. reverse radius25 mm
Apron weight4 kg
Option EiCON controlNo
Application areaMachine construction
Logistics
Reference numberRef: 0004

Conditions:

  • Manual operation
  • Interlock
