R-5.5

Rolling Gate with Interlock

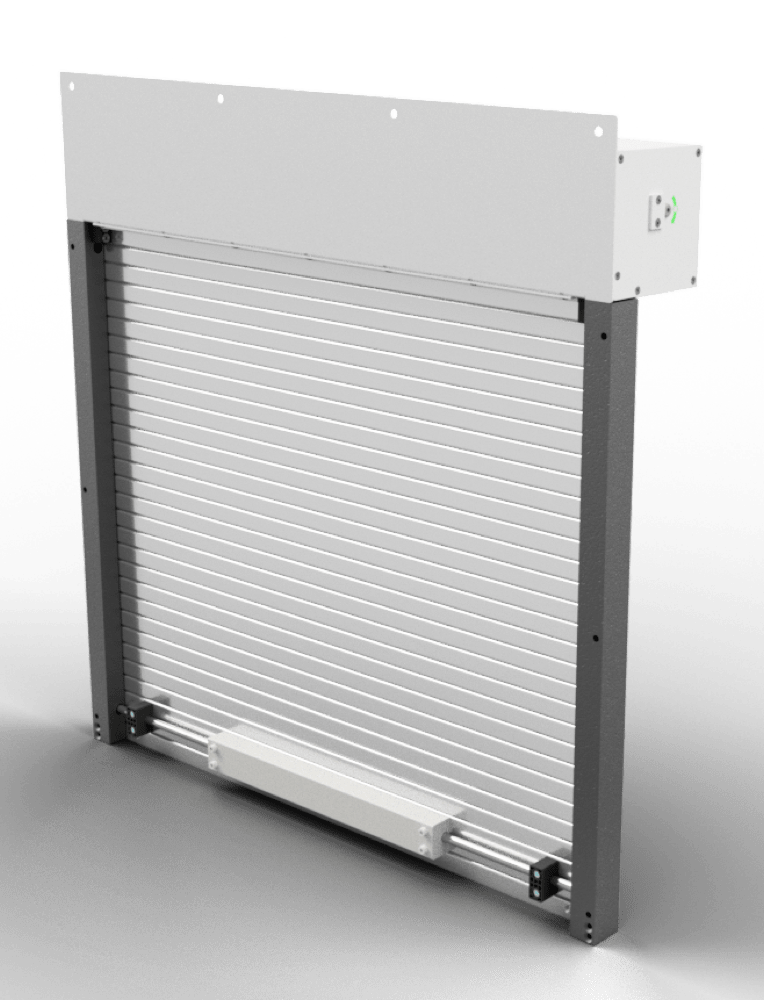

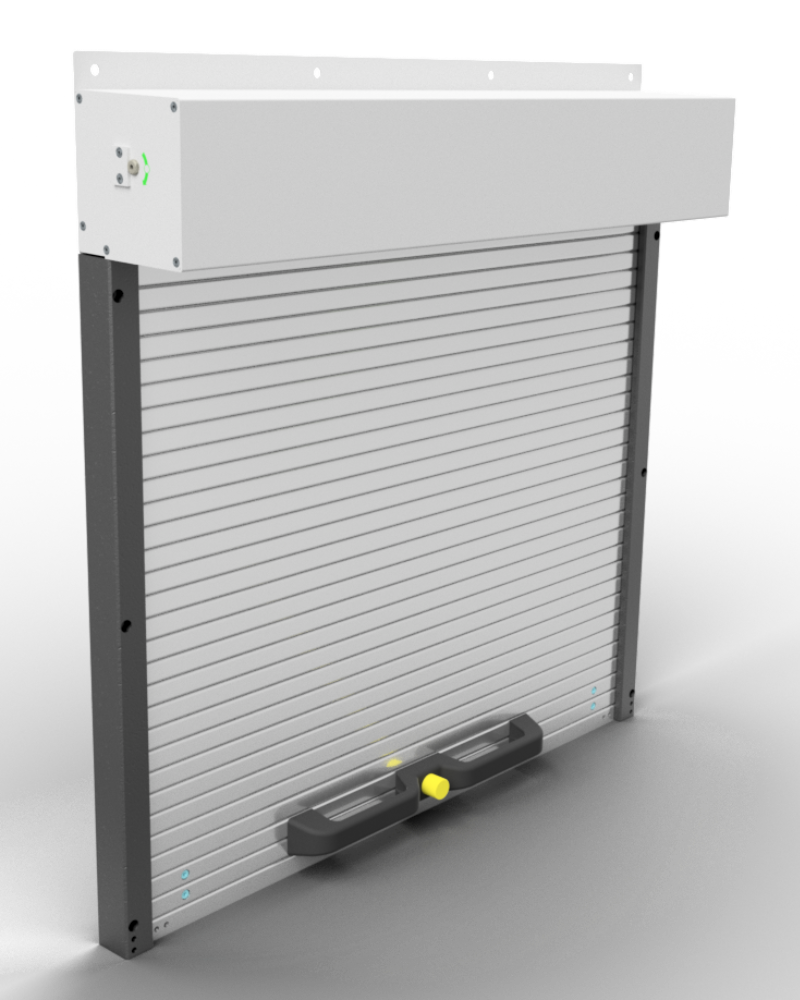

3D-Model Rolling Gate with Interlock
3D-Model Rolling Gate with Interlock

Equipment:

  • Alutec 5.5 Aluminum Profile
  • Slideway system
  • Housing
  • Handle with interlock
  • Adjustable force of the spring

Process:

  1. Open by pressing the lock
  2. The Rolling gate is opened by the spring motor
  3. Machine is loaded
  4. Closed by hand
  5. Locked in the end position

Technical data of the illustrated type:

Mounting positionRolling Gates
Extension length700 mm
Width 550 mm
Type of coverAluminum profile
Type of driveManual operation
Spring motor
Max. opening speed1 m/s
Max. closing speed1 m/s
Min. reverse radius25 mm
Apron weight3 kg
Option EiCON controlNo
Application areaMachine construction
Logistics
Reference numberRef: 0024

Conditions:

  • Manual operation
  • Interlock
