G-special fence

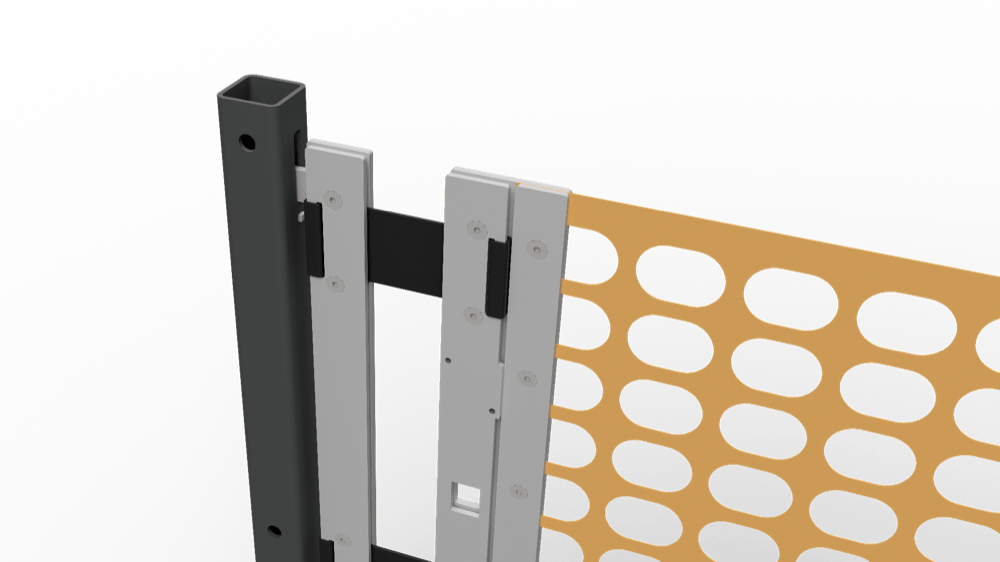

Barrier Fence with Hook Rail

3D-Model Pit Cover Barrier Fence with Hook Rail
3D-Model Pit Cover Barrier Fence with Hook Rail
3D-Model Pit Cover Barrier Fence with Hook Rail
3D-Model Pit Cover Barrier Fence with Hook Rail

Equipment:

  • Barrier fence
  • Hook rail
  • Winch
  • Spring motor
  • Housing
  • Slideway system
  • Transport device

Process:

  1. Barrier-free work by the robot
  2. Robot moves into the home position and pulls the barrier fence automatically and secures the area for the employee.
  3. The operator takes the parts and restarts the machine.
  4. The robot starts its process and the barrier fence is automatically wound up by the spring motor.

Technical data of the illustrated type:

Mounting positionPit Covers
Extension length5000 mm
Width 1200 mm
Type of coverTextile tape
Type of driveManual operation
Spring motor
Max. opening speed1 m/s
Max. closing speed1 m/s
Min. reverse radius10 mm
Apron weight3 kg
Option EiCON controlNo
Application areaMachine construction
Logistics
Automation
Reference numberRef: 0028

Conditions:
Dynamic barrier, light, space-saving, Barrier-free working, Safe loading and unloading
