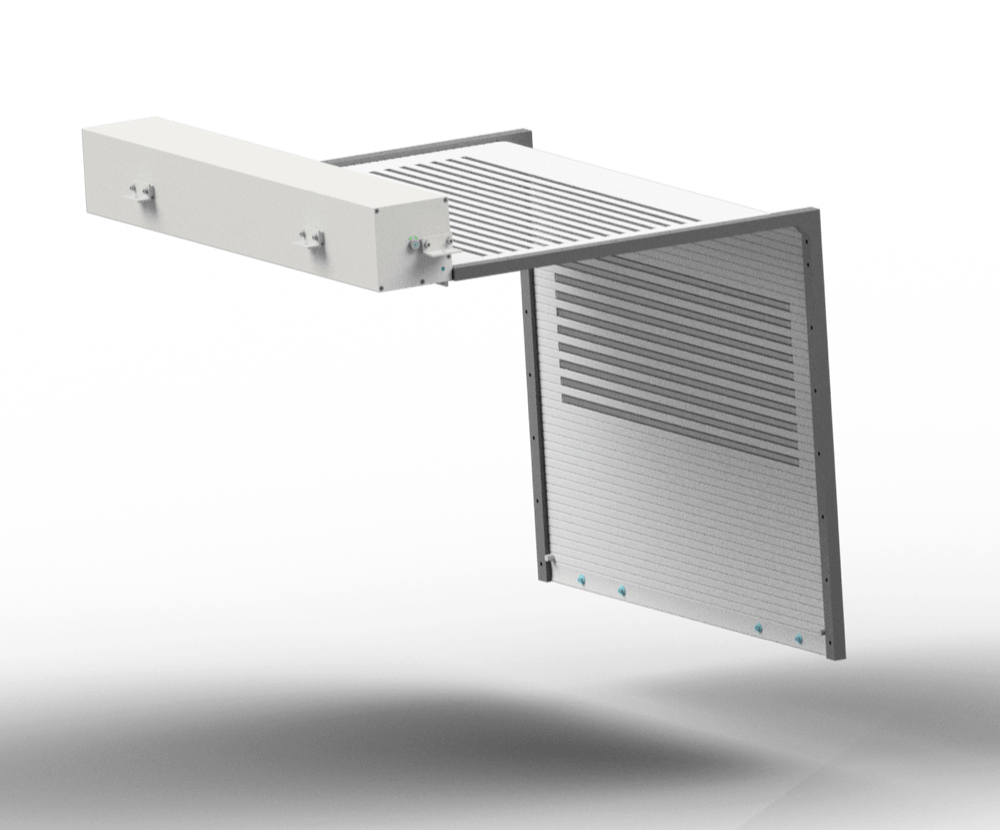

D-5.5

Roof cover with 90 degree deflection

Equipment

  • Alutec 5.5 Aluminium Profile
  • Manual / Spring motor
  • Slideway system
  • Housing
  • Viewing window (as strips)

Process

  • Assembly line is equipped by staff
  • Loading with or without crane
  • The roof cover is closed
  • The manufacturing process can be observed

Technical data of the illustrated type

Mounting position Roof Covers
Extension length 2000 mm
Width 1400 mm
Type of cover Aluminium profile
Type of drive Manual operation
Spring motor
Min. reverse radius 25 mm
Apron weight 22.4 kg
Option EiCON control No
Application area Machine construction
Logistics
Reference number Ref: 0012

Conditions
Barrier free equip, Loading with crane possible, No edge in head height, Ergonomic manual operation, View production process through viewing window
