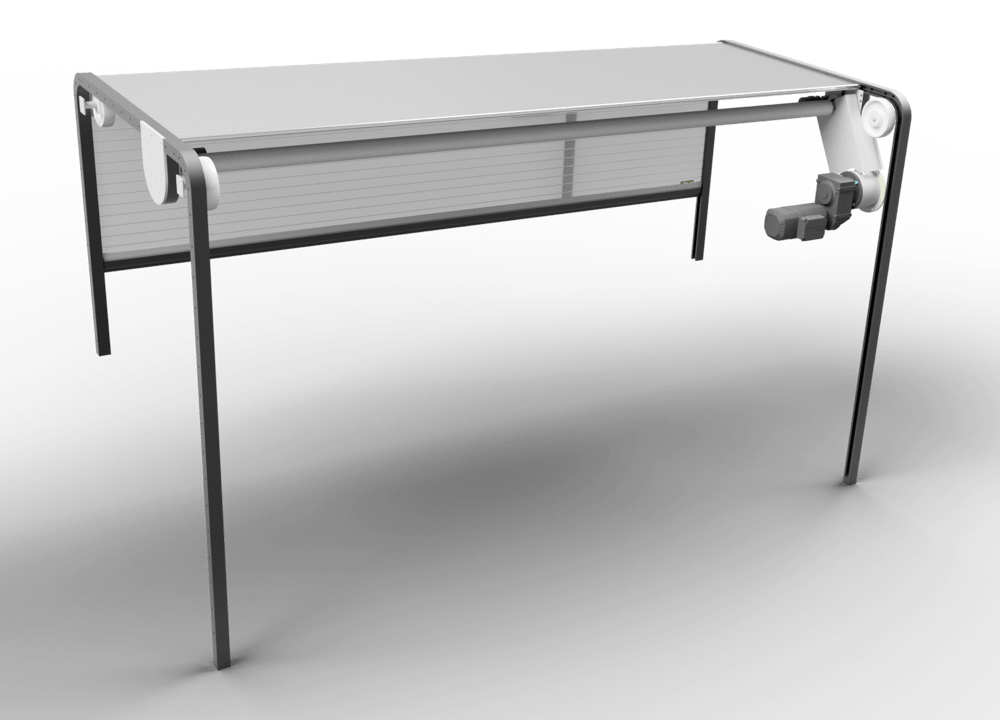

R-LS25-E

Protective Cover for a Test Stand

Equipment:

  • Alutec LS25 Aluminium Profile
  • Electrical drive with chain deflection
  • Guidance system with curve guidance
  • Guide rollers
  • Safety edge

Process:

  • Opening of the protection
  • Packaging of units
  • Closing of the protection cover
  • Fitting process starts

Technical data of the illustrated type:

Mounting position Rolling Gates
Extension length 2200 mm
Width 3700 mm
Type of cover Aluminium profile
Type of drive Motor
Max. width with load 2200 mm
Max. opening speed 0.22 m/s
Max. closing speed 0.22 m/s
Min. reverse radius 100 mm
Apron weight 325 kg
Option EiCON control No
Application area Machine construction
Logistics
Automation
Reference number Ref: 0001

Conditions:

  • Safety leading
