R-GLK12.0-E

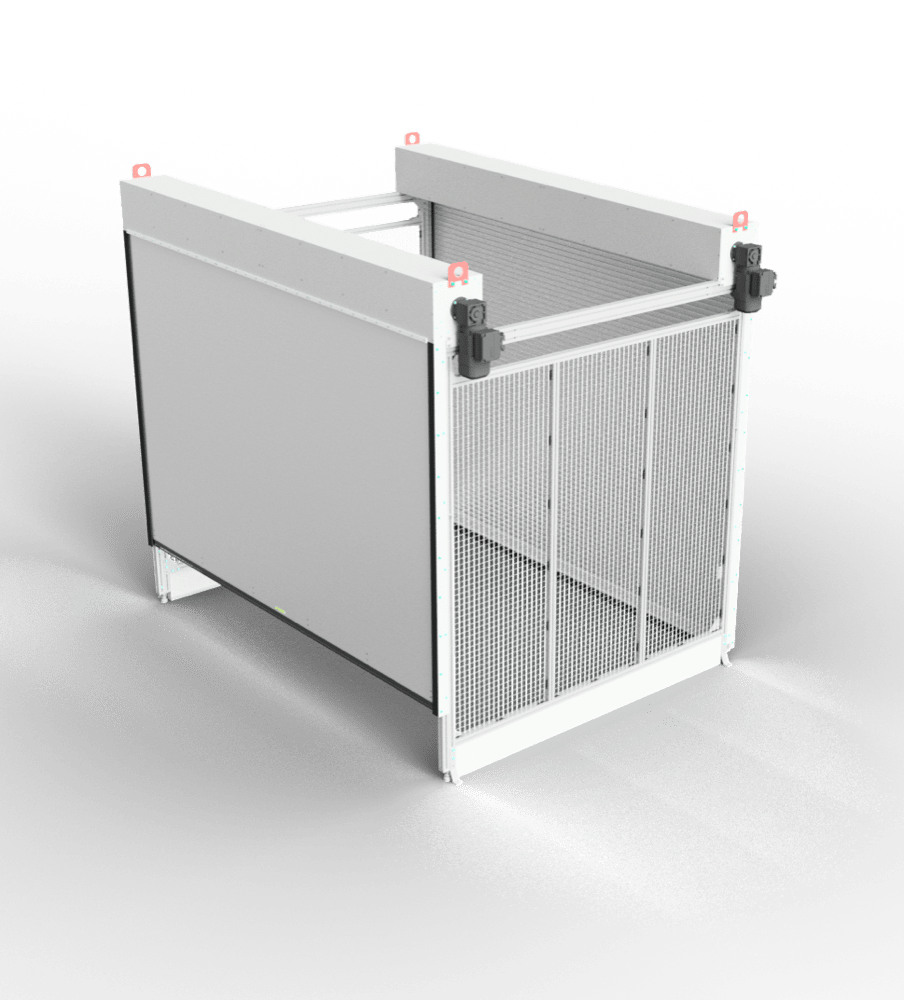

Workpiece Sluice

Equipment:

  • Alutec GLK12.0 Aluminium Profile
  • Electrical drive
  • Slideway system
  • Housing
  • Transport device

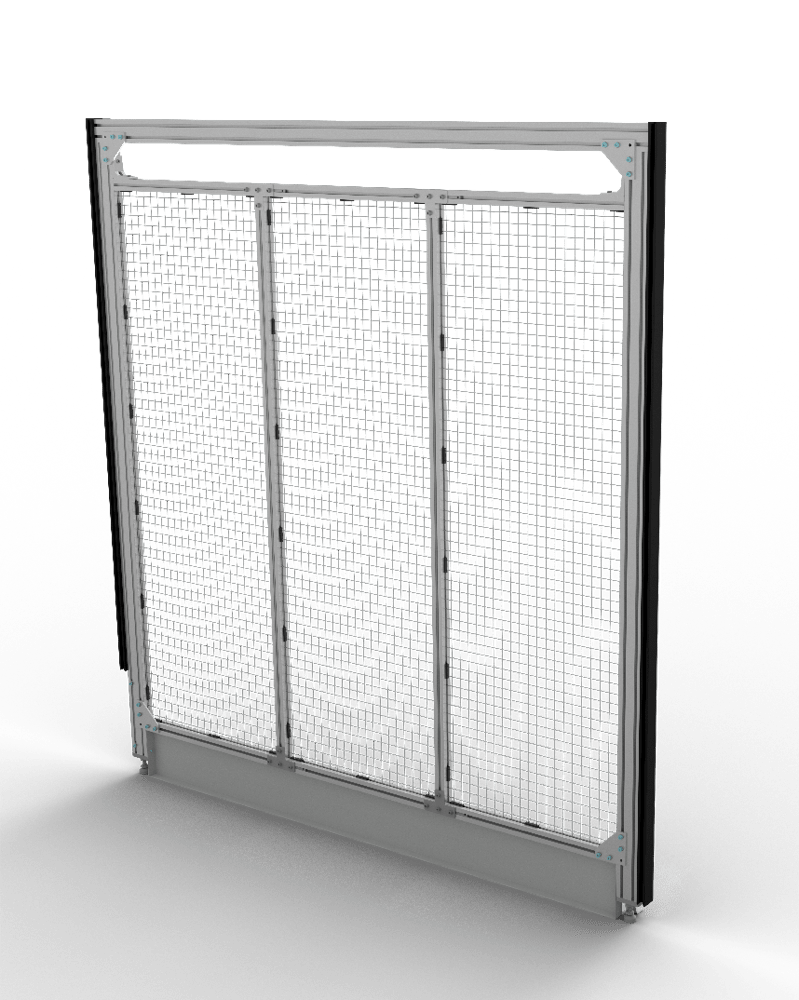

  • Safety fence

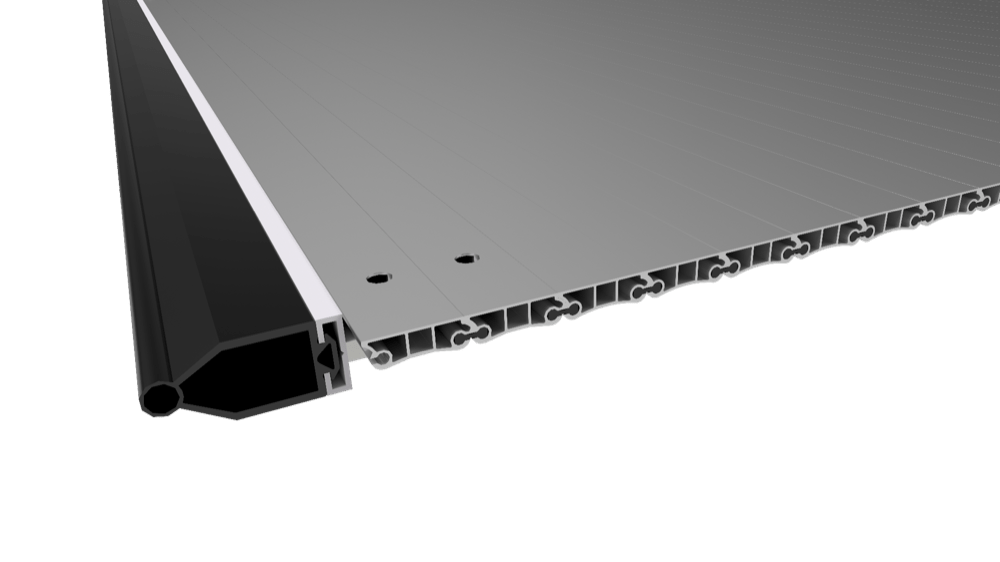

  • Safety edge

Process:

  1. Equipped with forklift truck on the feeding side
  2. CNC/ Machine processing
  3. Automated removal on the extraction side

    Technical data of the illustrated type:

    Mounting position Rolling Gates
    Extension length 2000 mm
    Width 3000 mm
    Type of cover Aluminium profile
    Type of drive Motor
    Max. width with load 700 mm
    Max. opening speed 0.5 m/s
    Max. closing speed 0.4 m/s
    Min. reverse radius 35 mm
    Apron weight 44 kg
    Option EiCON control Yes
    Application area Machine construction
    Logistics
    Automation
    Reference number Ref: 0019

    Conditions:

    • No access
    • Reliable opening and closing process
    • Integration in existing process

    Rolling Gate in Front of a Glass Processing Machine

    Equipment:

    • Alutec GLK12.0 Aluminium Profile
    • Electrical drive
    • Slideway system with curve guide
    • Deflection shaft for supporting the aluminium link apron
    • Safety edge (optional)

    Process:

    1. Protection gate is closed
    2. Glass is processed
    3. Protection against water and glass splitter
    4. Gate will open automatically
    5. Machine is unloaded and loaded

    Technical data of the illustrated type:

    Mounting position

    		 Rolling Gates
    Extension length 2280 mm
    Width 3700 mm
    Type of cover Aluminium profile
    Type of drive Motor
    Max. opening speed 0.6 m/s
    Max. closing speed 0.6 m/s
    Min. reverse radius 35 mm
    Apron weight 90 kg
    Option EiCON control Yes
    Application area Machine construction
    Automation
    Reference number Ref: 0005

    Conditions:

    • Glass splitter protection
    • Higher-level control
    • Flexible safety system
    • Light weight
    • Robust cover element
    • Standard components
