  5. R-5.5-E

R-5.5-E

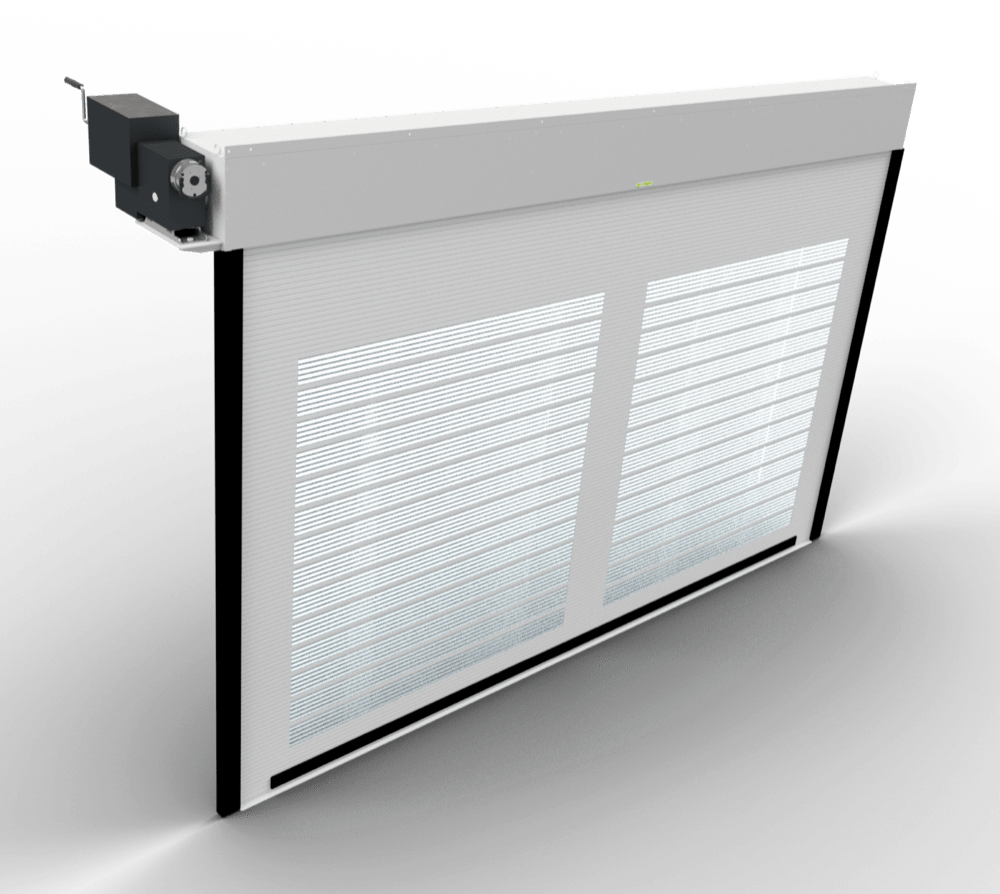

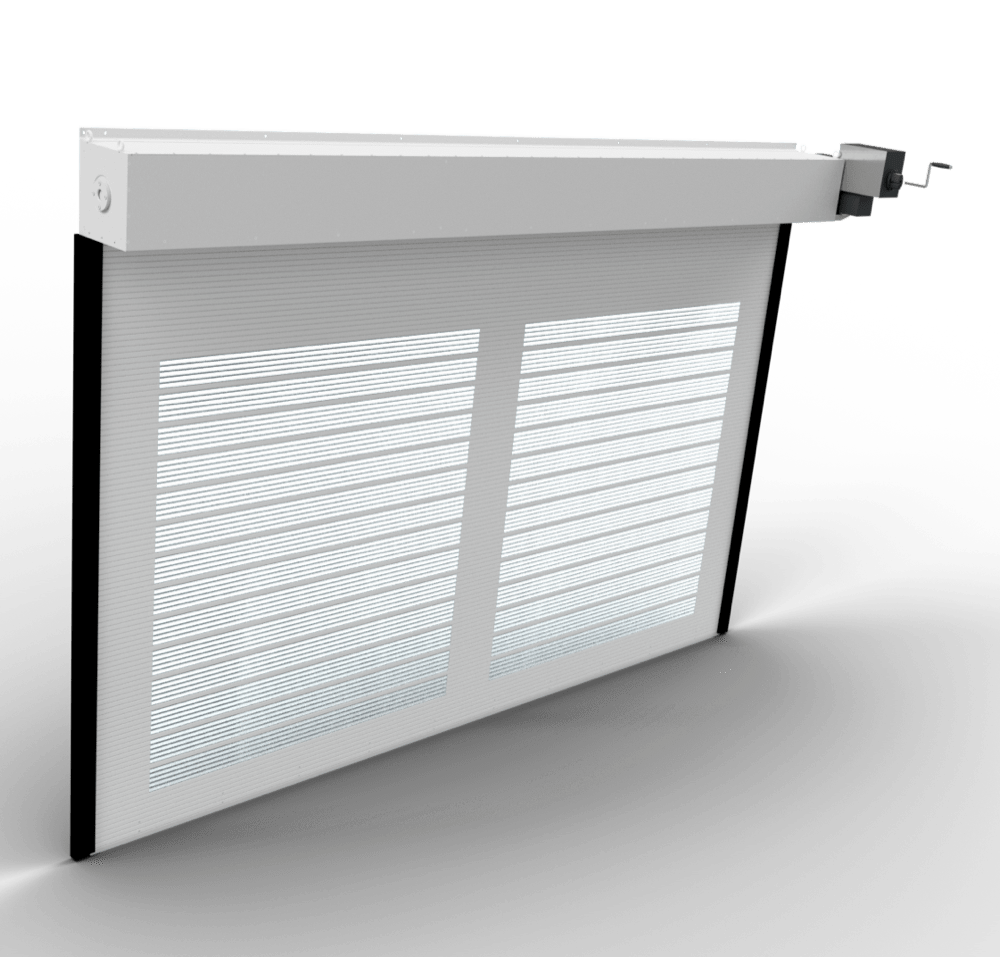

Rolling Gate for Service and Tool Change

Equipment:

  • Alutec 5.5 Aluminum Profile
  • Electrical drive
  • Slideway system
  • Housing with winding shaft
  • Transport device
  • Polycarbonate viewing window
  • Safety edge

Process

  • Roller door opens after actuation
  • Perform tool change / service
  • Roller shutter closes after actuation
  • Production process is monitored through the viewing windows at the beginning

Technical data of the illustrated type:

Mounting position Rolling Gates
Extension length 2155 mm
Width 3750 mm
Type of cover Aluminum profile
Type of drive Motor
Manual operation
Max. opening speed 0.5 m/s
Max. closing speed 0.4 m/s
Min. reverse radius 20 mm
Apron weight 68 kg
Option EiCON control Yes
Application area Machine construction
Logistics
Automation
Reference number Ref: 0022

Conditions:

  • Viewing window
  • Process monitoring
  • Operator protection

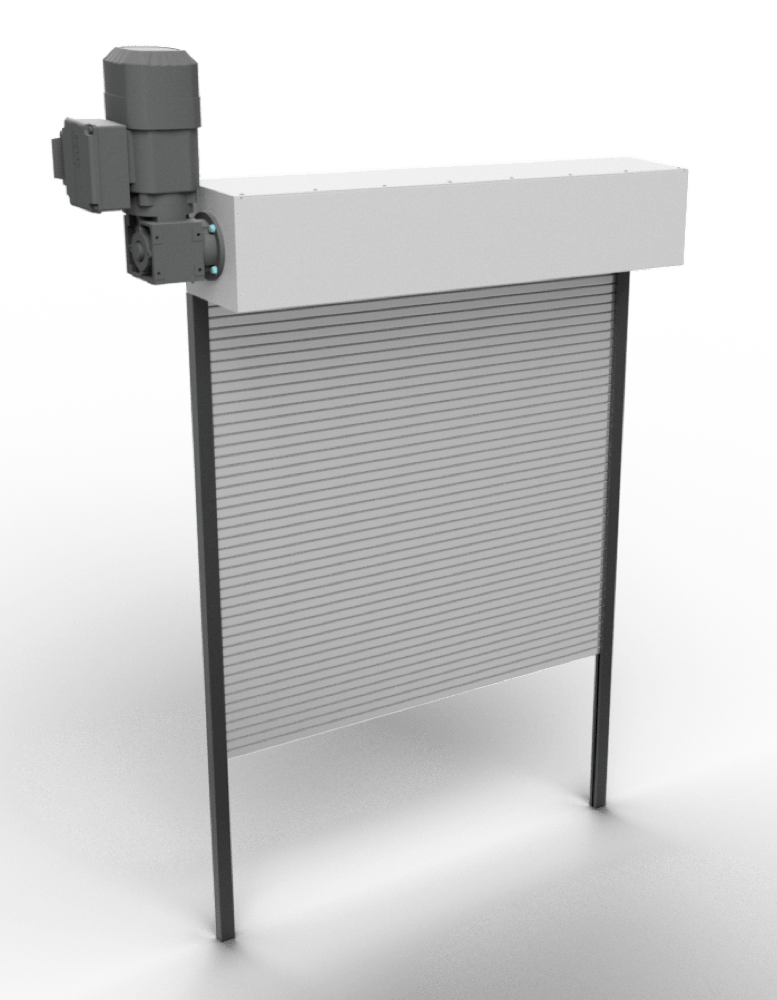

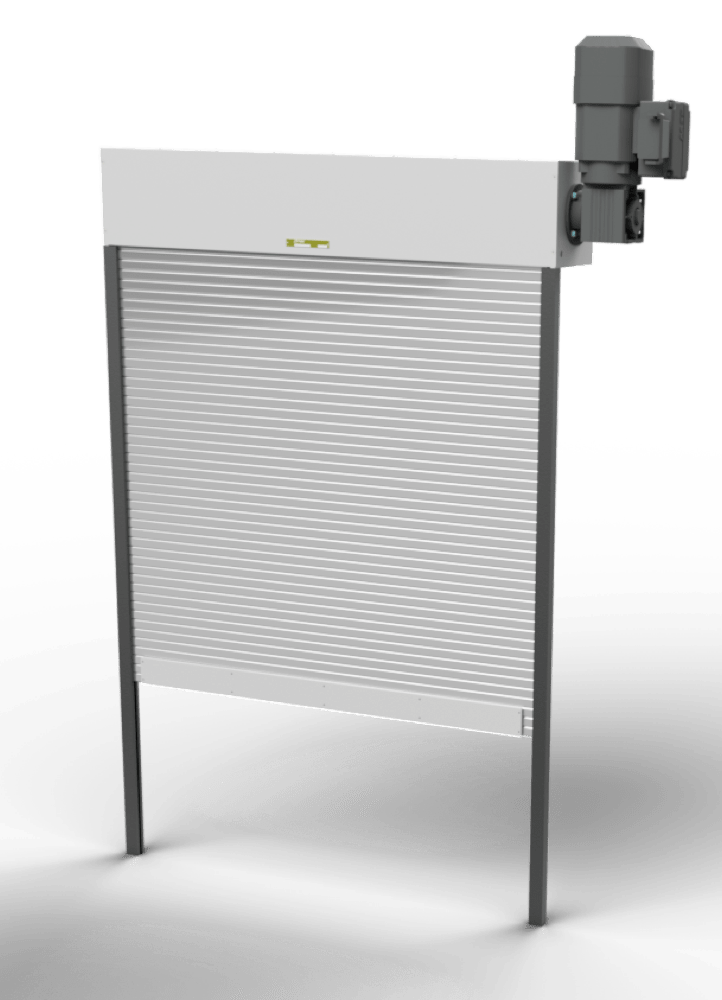

Rolling Door with Housing

Equipment:

  • Alutec 5.5 Aluminum Profile
  • Electrical drive
  • Slideway system
  • Housing with winding shaft
  • Transport device
  • Safety edge (optional)

Process:

  • Rolling door opens
  • Robot unloads and loads transport box with workpiece
  • Rolling door closes automatically

Technical data of the illustrated type:

Mounting position Rolling Gates
Extension length 1400 mm
Width 1000 mm
Type of cover Aluminium profile
Type of drive Motor
Max. opening speed 0.33 m/s
Max. closing speed 0.33 m/s
Min. reverse radius 25 mm
Apron weight 11.2 kg
Option EiCON control Yes
Application area Machine construction
Logistics
Automation
Reference number Ref: 0016

Conditions:

  • Rolling door integration into the existing system
  • Installation space specified by the customer
  • Connection to the existing PLC
  • Specification of the motor position
