H-5.5

Logistics Center

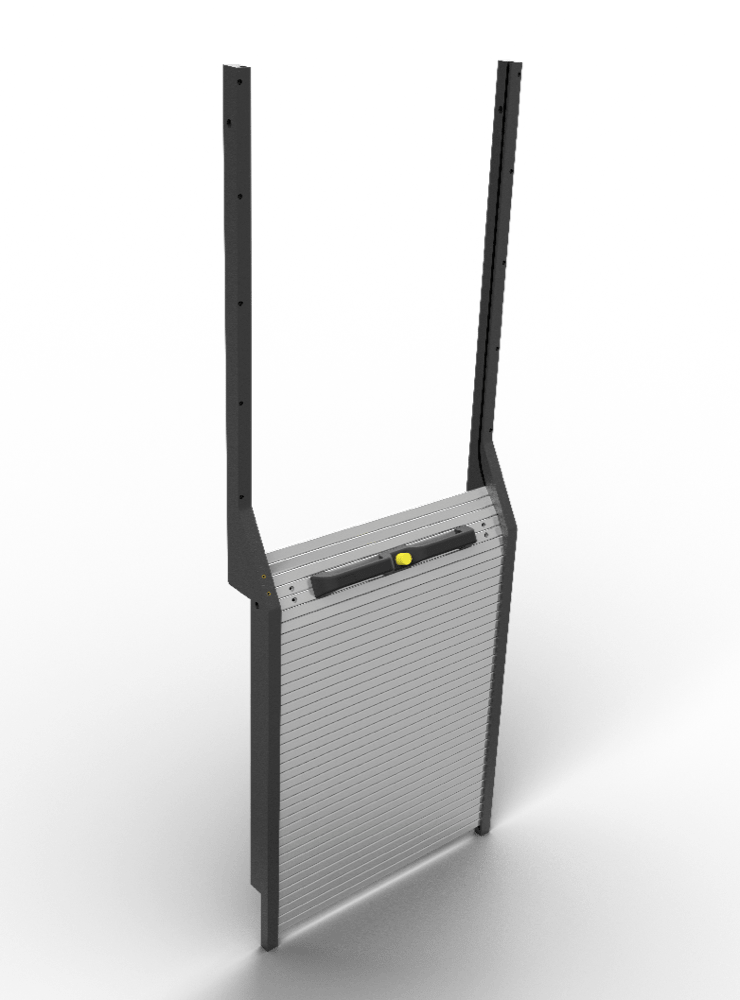

3D-Model Lift Gate Logistics Center
3D-Model Lift Gate Logistics Center
3D-Model Lift Gate Logistics Center
3D-Model Lift Gate Logistics Center

Technical data of the illustrated type:

Mounting positionLift Gates
Extension length790 mm
Width 547 mm
Type of coverAluminium profile
Type of driveManual operation
Max. opening speed1 m/s
Max. closing speed1 m/s
Min. reverse radius25 mm
Apron weight3 kg
Option EiCON controlNo
Application areaLogistics
Reference numberRef: 0027

Equipment:

  • Alutec 5.5 Aluminium Profile
  • Handle with interlock
  • Slideway system
  • Transport device
  • Viewing window

Process:

  1. Process monitoring through viewing window
  2. Lift the door by hand
  3. Load the conveyor belt with packages
  4. Close the lifting gate

Conditions:

  • Transparent
  • Easy to handle

Logistics Center

3D-Model Lift Gate Logistics Center
3D-Model Lift Gate Logistics Center
3D-Model Lift Gate Logistics Center
3D-Model Lift Gate Logistics Center
3D-Model Lift Gate Logistics Center

Technical data of the illustrated type:

Mounting positionLift Gates
Extension length770 mm
Width 547 mm
Type of coverAluminium profile
Type of driveManual operation
Max. opening speed1 m/s
Max. closing speed1 m/s
Min. reverse radius25 mm
Apron weight3 kg
Option EiCON controlNo
Application areaLogistics
Reference numberRef: 0026

Equipment:

  • Alutec 5.5 Aluminium Profile
  • Handle with interlock
  • Slideway system with deflection
  • Housing
  • Transport device
  • Viewing window

Process:

  1. Process monitoring through viewing window
  2. Lift the door by hand
  3. Load the conveyor belt with packages
  4. Close the lifting gate

Conditions:

  • Transparent
  • Easy to handle
